2024 Model TYE
Strong Power,Speed Up Instantly
12KW
Peak Power
1000N.M
Wheel Torque
125Km/h
Top Speed
4.8s
0~100m Speedy Acceleration
Outdoor Enduro,Cross and Climbing
108KG
Ultra-Light Weight Design
150KM
Range
50°
Climbing angle
3-4 H
Fast Charging

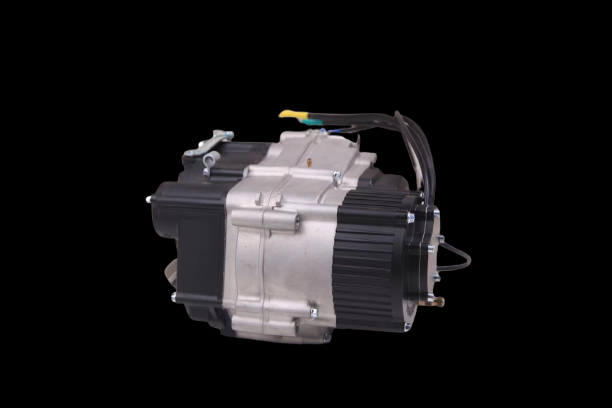

High Performance Four Speed Mid-Drive Motor
Independent Research and Development
BLDC Four Speed
Large Torque
Mechanical Gear Shifting
Strong Power
Fast Acceleration
Air-cooled
Easy to dissipate heat

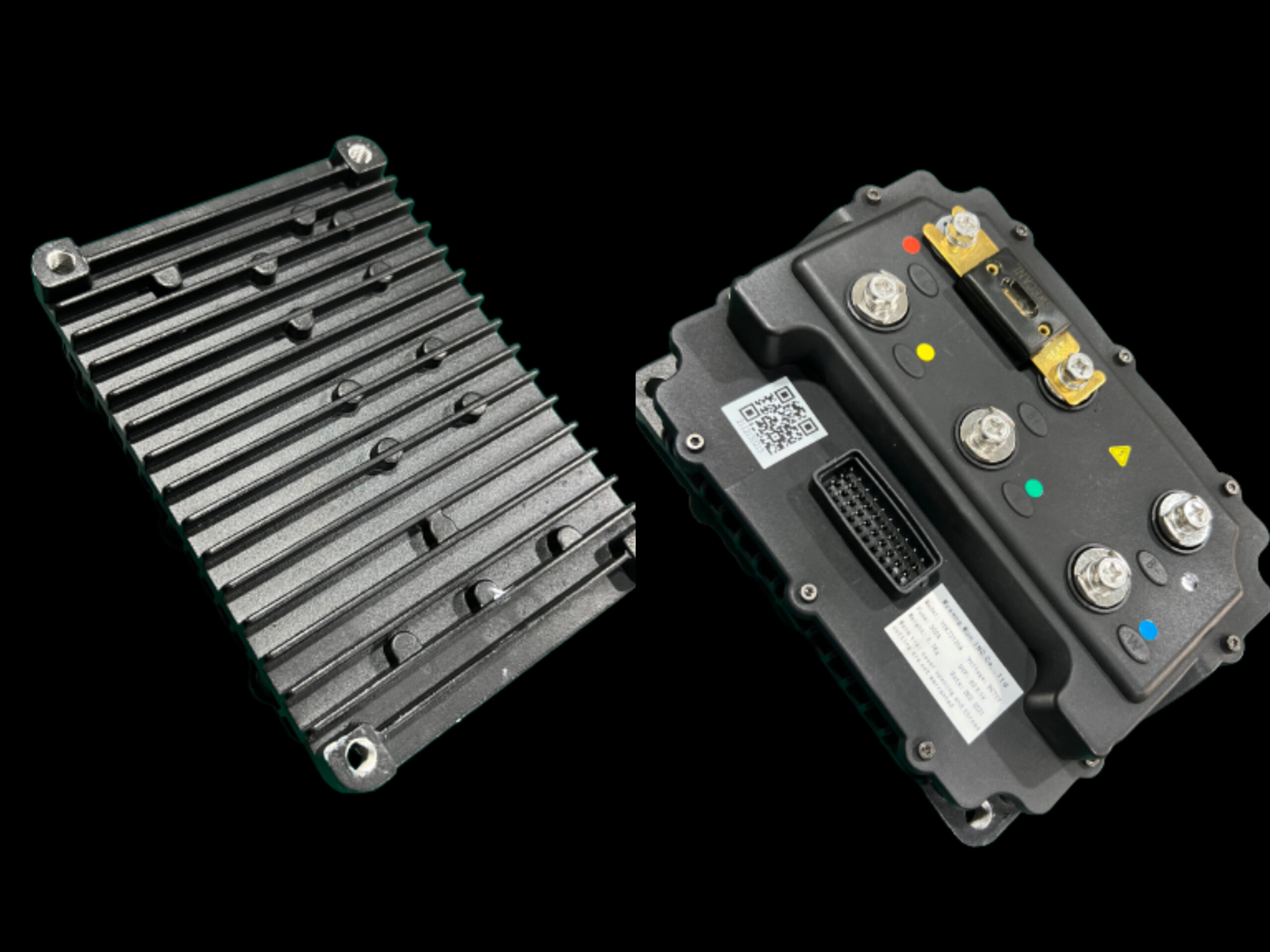

Self-Developed Vector Controller
Self-Developed Vector Controller
The design concept refers to the automobile standard. The chip adopts imported semiconductors, the MOS tube adopts imported materials, and the racing-level torque ring is controlled. The start is smooth, the acceleration performance is good, and the climbing ability is stronger.

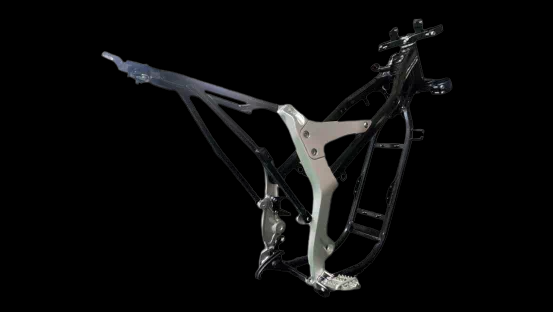

Enveloping Steel-aluminum Hybrid Body Design
Controlled, instantly fascinated!
100w+ vibration fatigue test, very light and resistant.
The lightweight design of the whole vehicle, as low as
110kg, with simple and smooth lines, all in one go.

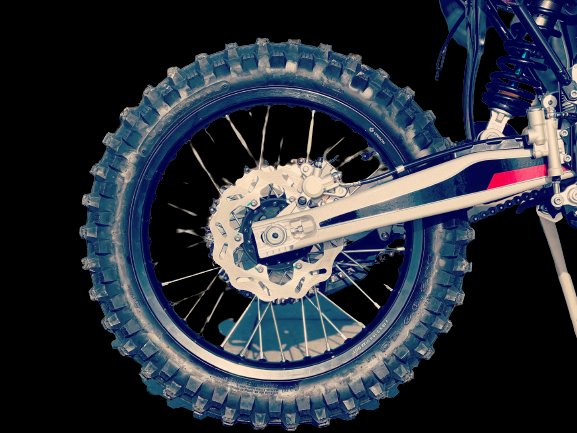

Aluminum Flat Fork
Racing grade aluminum flat fork,
Taking into account the dual fun of vision and body feeling, feel the passion of playing.
Brake System

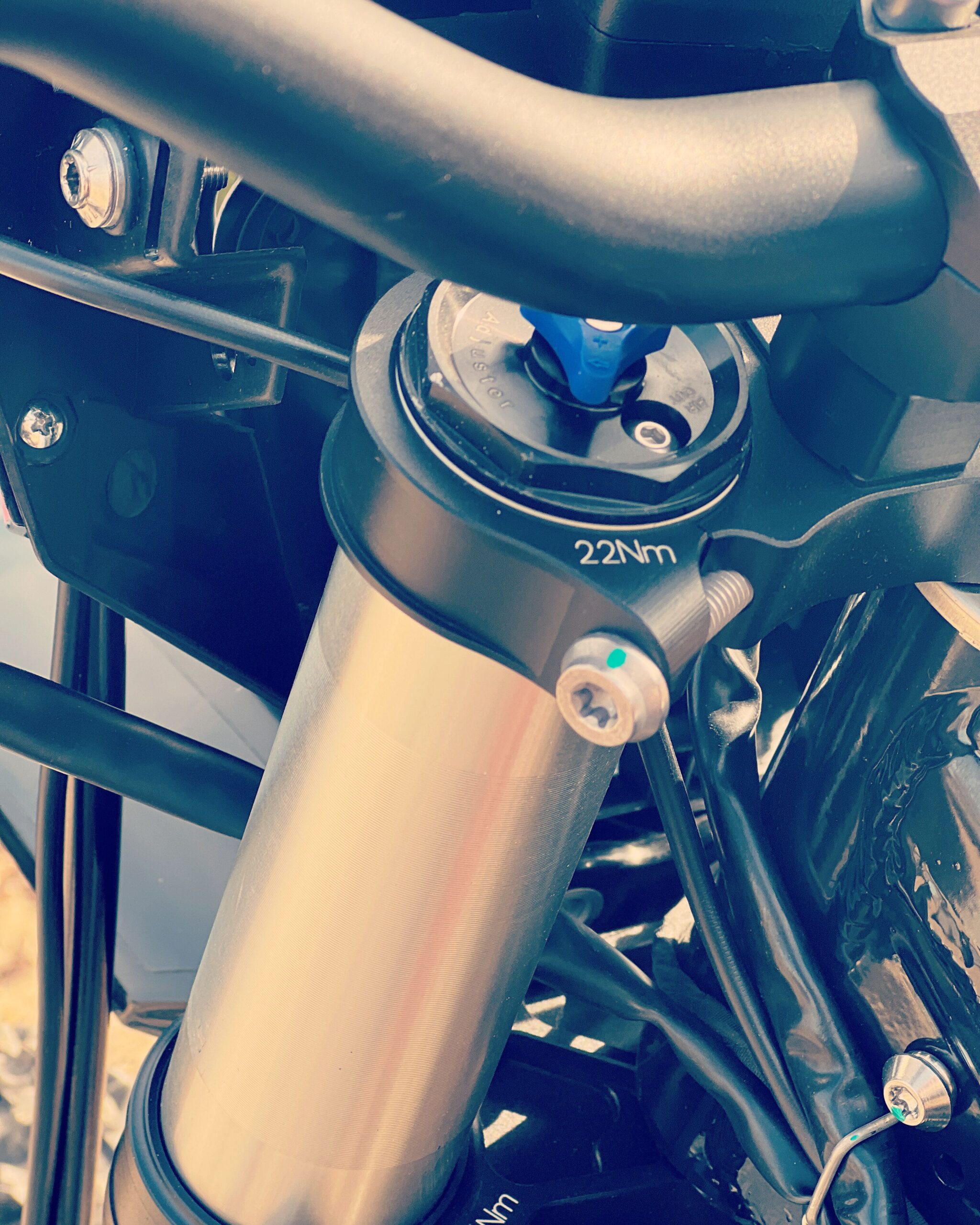

Hydraulic shock absorber, custom-made special inverted front fork, using advanced MNT Brand, adjustable in height, suitable for different off-road scenes, greatly improving the practicality, and bringing out the performance of the motorcycle to the fullest
Rear suspension: hydraulic shock absorber, adopting mature technology progressive damping suspension, adjustable in height, suitable for different off-road scenes
High-quality Tires for Off-Road
Front Tire:(80/100-21)
Rear Tire:(110/90-18)

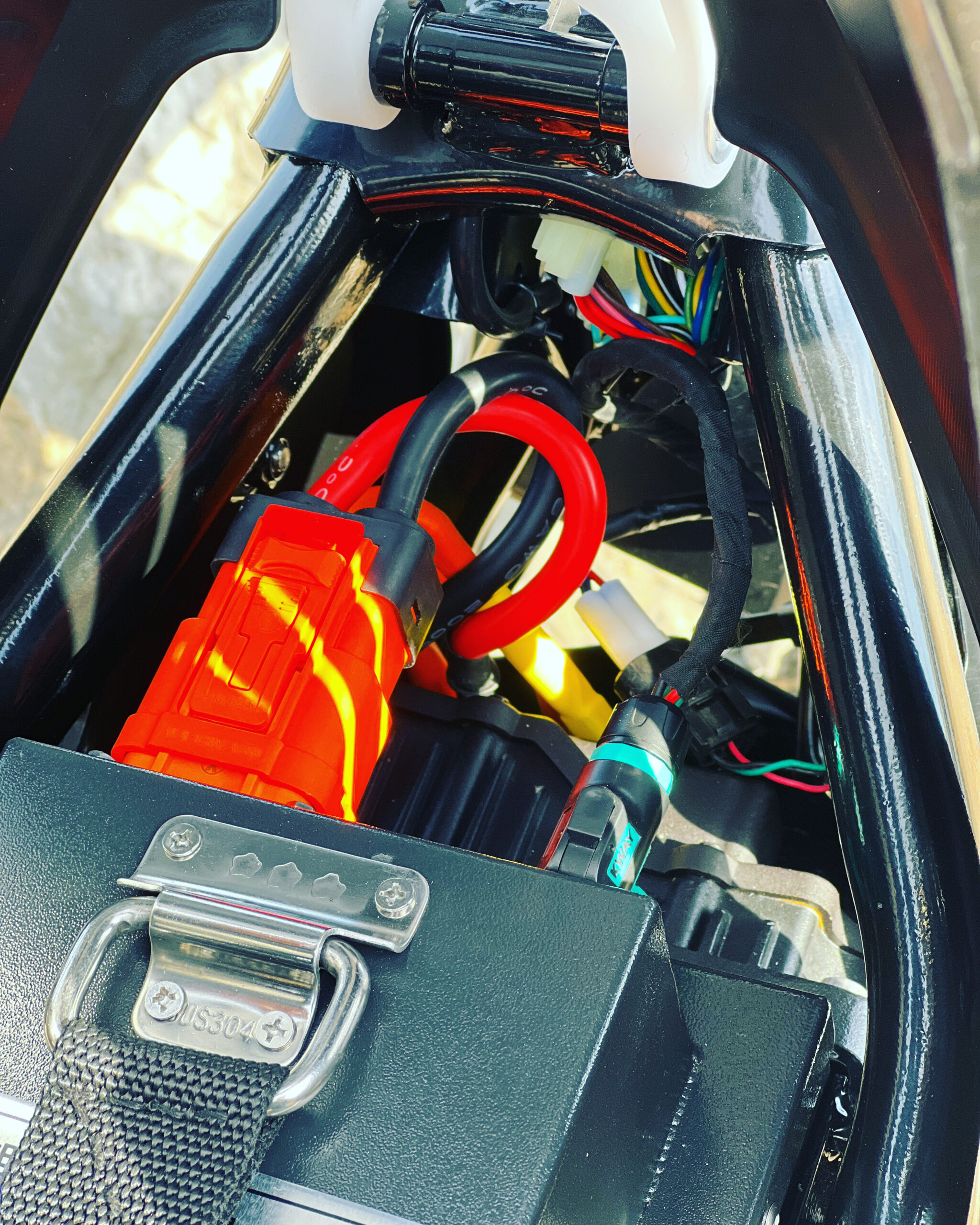

Quick Battery Changing
Easy and Fast
Effective Battery Pack ,Fast Charging
Leading CATL Lithium ion Battery
High Energy, High Efficiency, Safe & Reliable
Advanced Smart BMS system Connect with Blue toothThe battery replacement time is only 60s
Effective Battery Pack
485 System
The battery gas meter adopts 485 communication system
BMS System
The functions comprehensively strengthen the BMS system, and protect the safety of the batteries in all directions
Waterproof Level
IP65
Two Classical Color

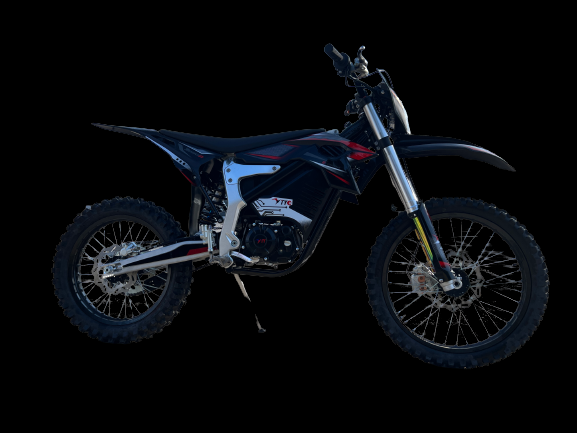

TYE Cool Black-Red Color

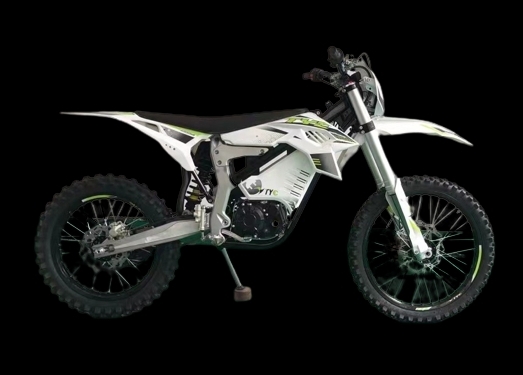

TYE White-Green
2024 Model TYE
MSRP:$7999-$9999
- Color: Cool Black/Pearl White
- Battery: 72V40Am/72V50A /72V60Am
- Trie: (off Road/on Road)
SPECIFICATIONS
Motor
- Mid-mounted,BLDC Motor with Four-speed Forward Gears
- Peak Power(KW)12
- Wheel Peak Torque(N)1000
- Voltage (V) 72
- Rated Power(KW)3
Battery
- Lithium Battery CATL 72V 40Ah
- Battery Rated Voltage (V) 72
- Battery Rated Capacity(A)40Amp-Hour
- Peak output Current(A) 300
- Continuous output Current(A) 150
- Charging Time (H) 3-4H
- Range (KM) 150
Controller/Suspension/Brake
- New Customsize Controller
- Front Suspension Adjustable MNT BRAND
- Rear Suspension Adjustable MNT BRAND
- Front&Rear Brake Hydraulic Disc Brake
Chassis
- Frame 6061 Forge Aluminium Alloy+Metal Q345B
- Rear Fork Aluminium Alloy
- Front&Rear Rim 7116 code Alloy
- Front&Rear Hub Cast
- HandleBar Aluminium Alloy
- Brake & Clutch Laver Aluminium Alloy
- Steering Aluminium Alloy 7075
- Drive Chain 520
- Drive Sprocket Steal
- Front&Rear Disc Brake Pad CD.Copper.Base
- Display Meter LCD
- All set of Light LED
Dimensions&Weight
- Size(mm)2120*840*1225
- Wheelbase(mm)1424
- Seat Hight(mm)900
- Ground Clearance(mm)318
- Front&Rear Tire 80/100-21,110/90-18
- Weight(Kg)118
- Carrying Capacity(Kg)150
